CAMERA

Lens:

Focal Length: 1.97 mm
Aperture: F1.83
Field of View: 180° (Diagonal)

Night Vision:

Infrared Night Vision (30 ft / 10m)
Full-Color Night Vision

Lighting:

2× Built-in Spotlights
6× Built-in White lights

Interface & Button:

1× RESET Button
1×Anti-theft Button
1× ON/OFF Button
1× Doorbell Button
1× MicroSD Card Slot (Up to 512GB)

Day/Night Switch:

IR-Cut Filter with Auto-Switching

Flash:

32MB Nor Flash + 16MB Nor Flash

NETWORK

Network Connectivity:

Connect via Wi-Fi

Wireless Connectivity:

IEEE 802.11a/b/g/n
Bluetooth(for setup only)

GENERAL

Certification:

FCC, IC,IP66, DOE,CEC

Package Contents:

1. Tapo D260 Doorbell
2. Mounting Bracket
3. Horizontal Mounting Wedge
4. Vertical Mounting Wedge
5. Mounting Template Sticker
6. 3M Adhesive ×2
7. Foam Pad
8. Mounting Screw ×3
9. Mounting Anchor ×3
10. Mounting Wedge Screw ×5
11. 1.64ft Type-C Cable
12. Extension Wires ×2
13. Jumper for Existing Chime
14. Wire Nuts ×2
15. Quick Installation Guide

Dimensions( H X W X D ):

5.73*2.57*1.42 in(140.5*65.2*36.2mm)

Operating Temperature:

-20℃~45℃(-4℉ ~ 113℉)

Operating Humidity:

10%~90% RH, Non-condensing

Storage Temperature:

-40℃~60℃(-40℉ ~ 140℉)

Storage Humidity:

0~90% RH, Non-condensing

Weather Resistance:

IP66

Smart Integration:

Google Assistant, Amazon Alexa,Smartthings

Mounting Options:

Stick to a Wall
Mount to a Wall

Charging Temperature:

0-45℃(32℉~113℉)

SECURITY

On-Device Machine Learning
128-bit AES Encryption with SSL/TLS
WPA/WPA2-PSK/WPA3-PSK

POWER

Power Source:

Hardwired(8~24V AC)
Built-in Rechargeable Lithium-ion Battery

Input Voltage:

5.0 V, 2.0 A, Type-C
8V~24V,AC Hardwired

STORAGE

Local Storage:

MicroSD Card Slot on Camera (Up to 512 GB)
General Information about using MicroSD Cards >(https://www.tp-link.com/en/support/faq/3048/)

Cloud Storage:

Tapo Care Cloud Storage Services (Subscription required)

VIDEO & AUDIO

Maximum Resolution:

Frame Rate:

15 fps

Digital Zoom:

28.5

Video Compression:

main stream: H.265
minor stream: H.264

Live View:

Yes

Image Enhancement:

3DNR
HDR
LDC

Audio Input & Output:

Built-in Microphone and Speaker

Audio Communication:

Two-Way Audio with Noise Cancellation

Siren Volume:

94 dB (Level measured at 4-inch/10-cm distance)

DETECTION and NOTIFICATIONS

Activity Zones:

Yes

AI Detection:

Motion Detection
Person Detection
Animal Detection
Vehicle Detection
Package Detection
Facial Detection

Sensor:

Dual Motion Sensor :PIR Sensor
1x Ambient Light Sensor
1x RADAR Sensor

Output Notification:

App Notifications of Camera Event

PRODUCT INFORMATION

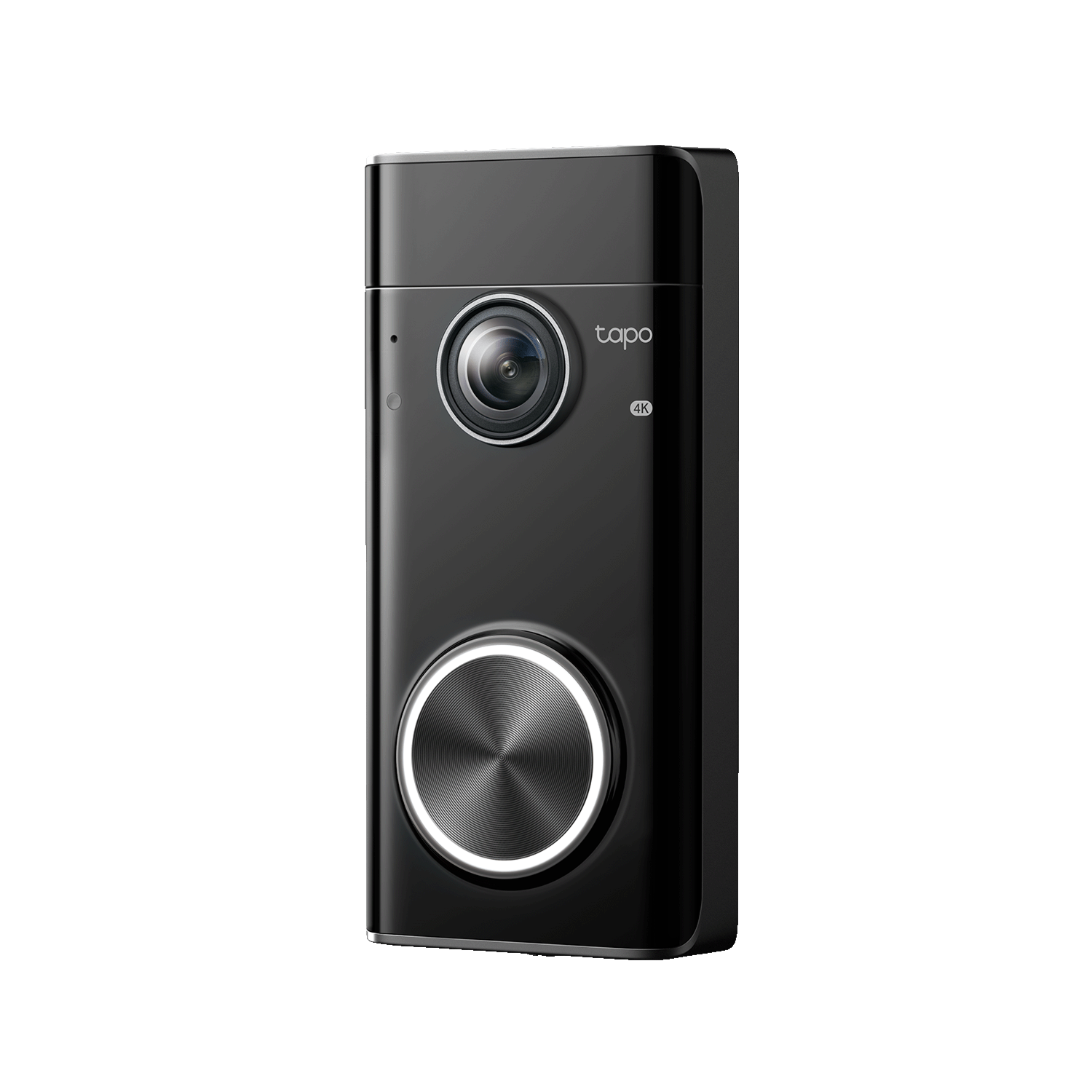

Product Images:

Product Description:

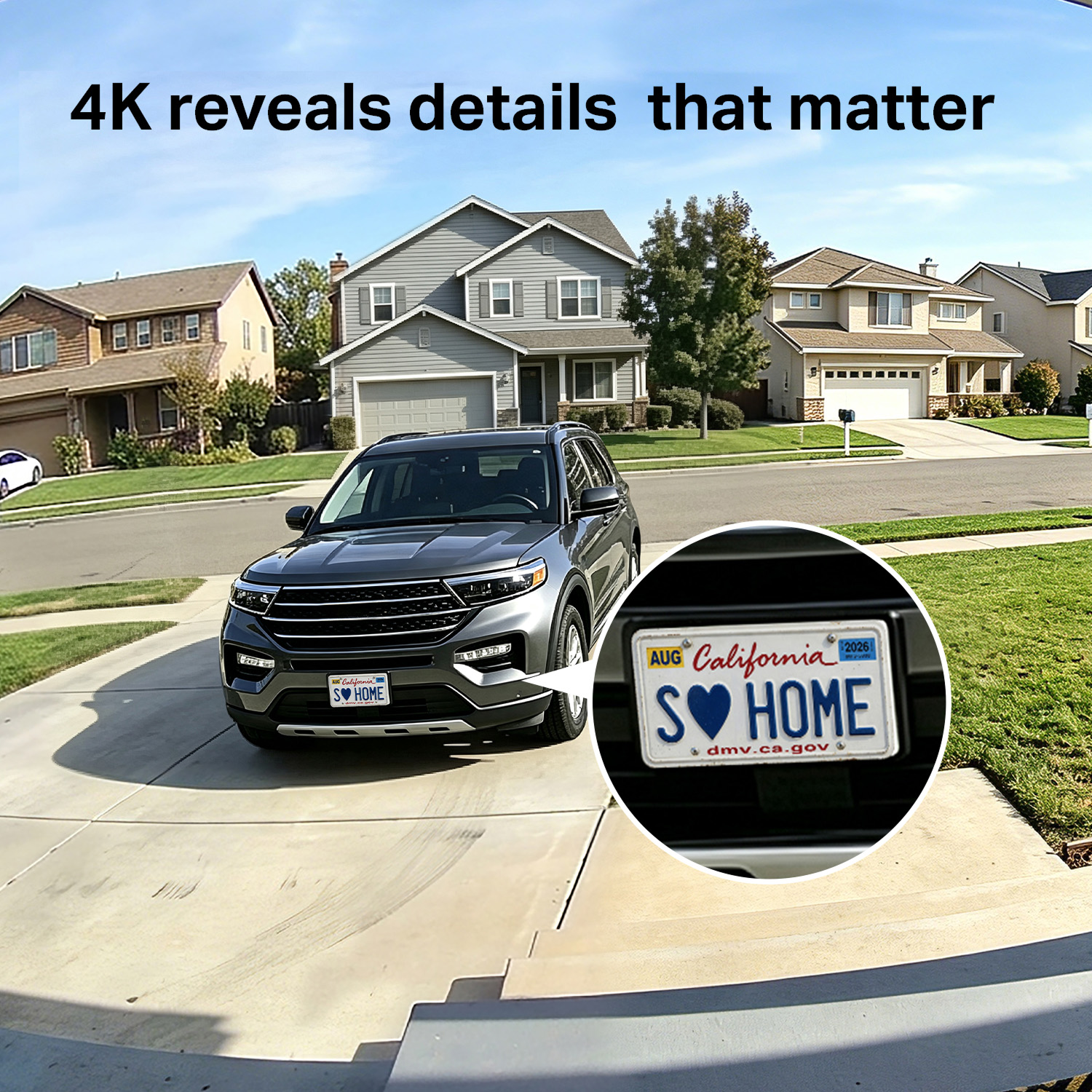

• See it all in 4K, head to toe: Crystal clear 4K video and two-way audio keep you connected to your doorstep, anytime, anywhere.

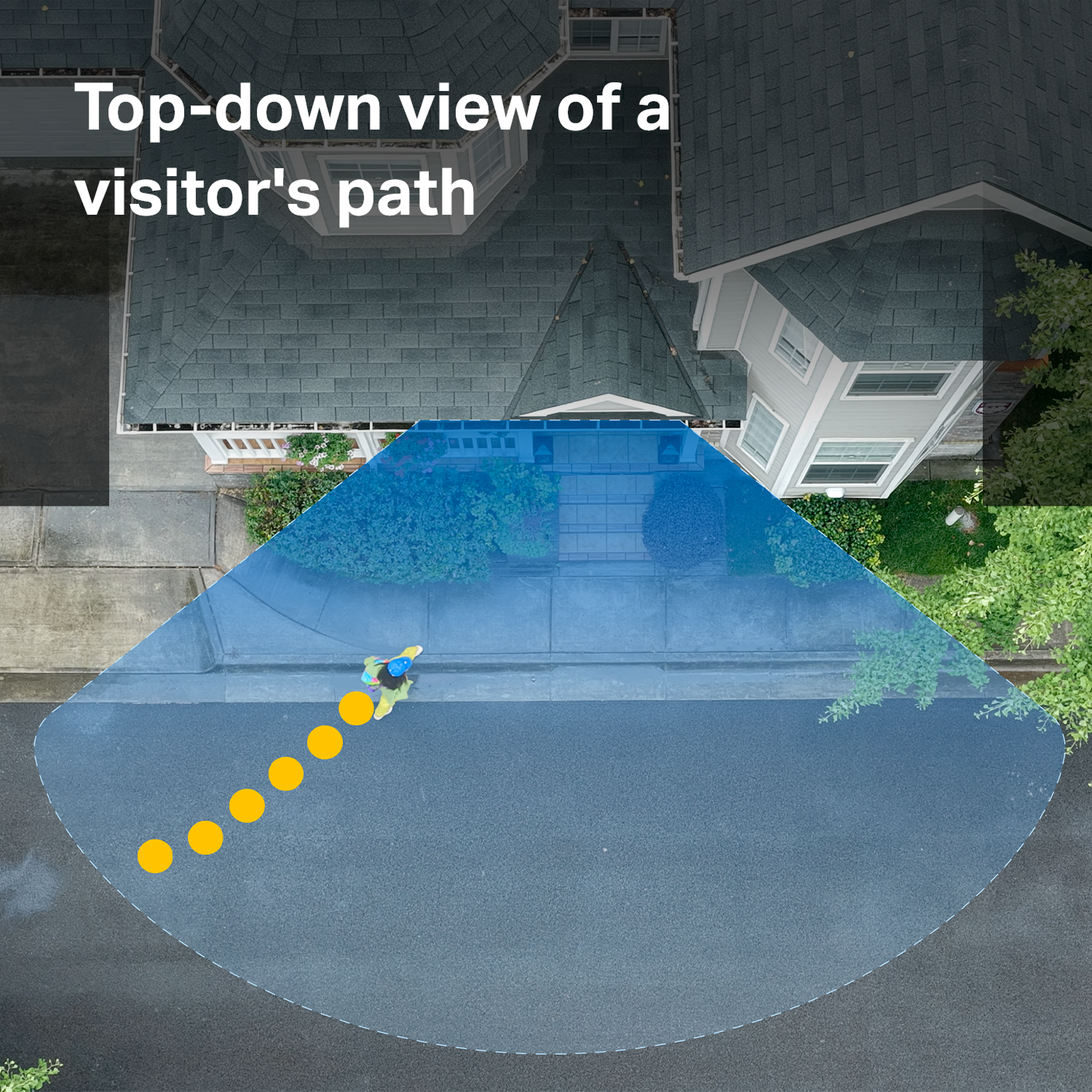

• Motion detection that actually matters: Radar-based sensing delivers precise real-time alerts and an aerial view of exactly where the motion happened.

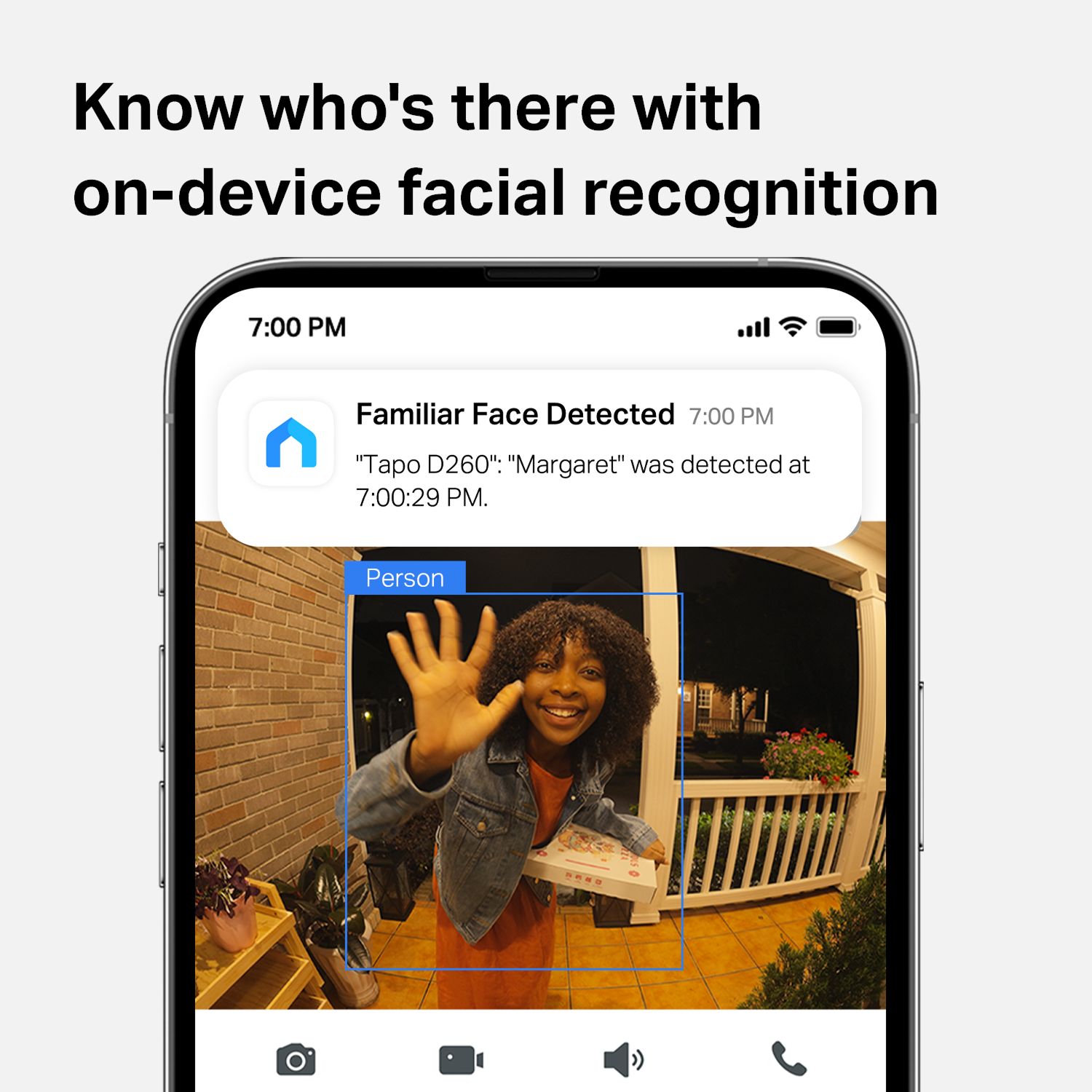

• Your door knows who's there: On-device AI recognizes family, friends, and frequent visitors. Facial profiles stay stored securely at home, never online.

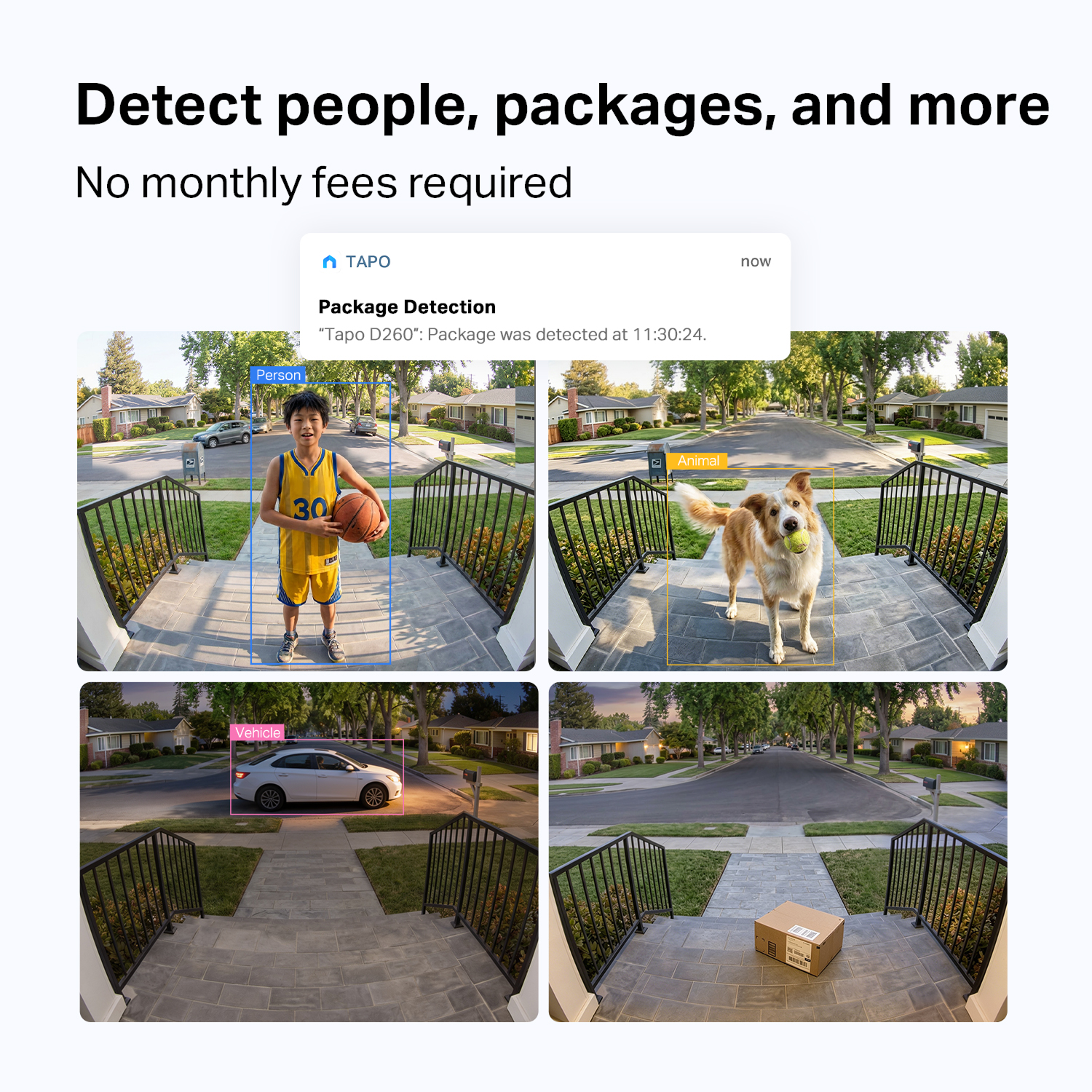

• Pick the alerts worth following: AI detection tags people, animals, vehicles, or packages at no extra cost. Choose what matters and ignore the rest.

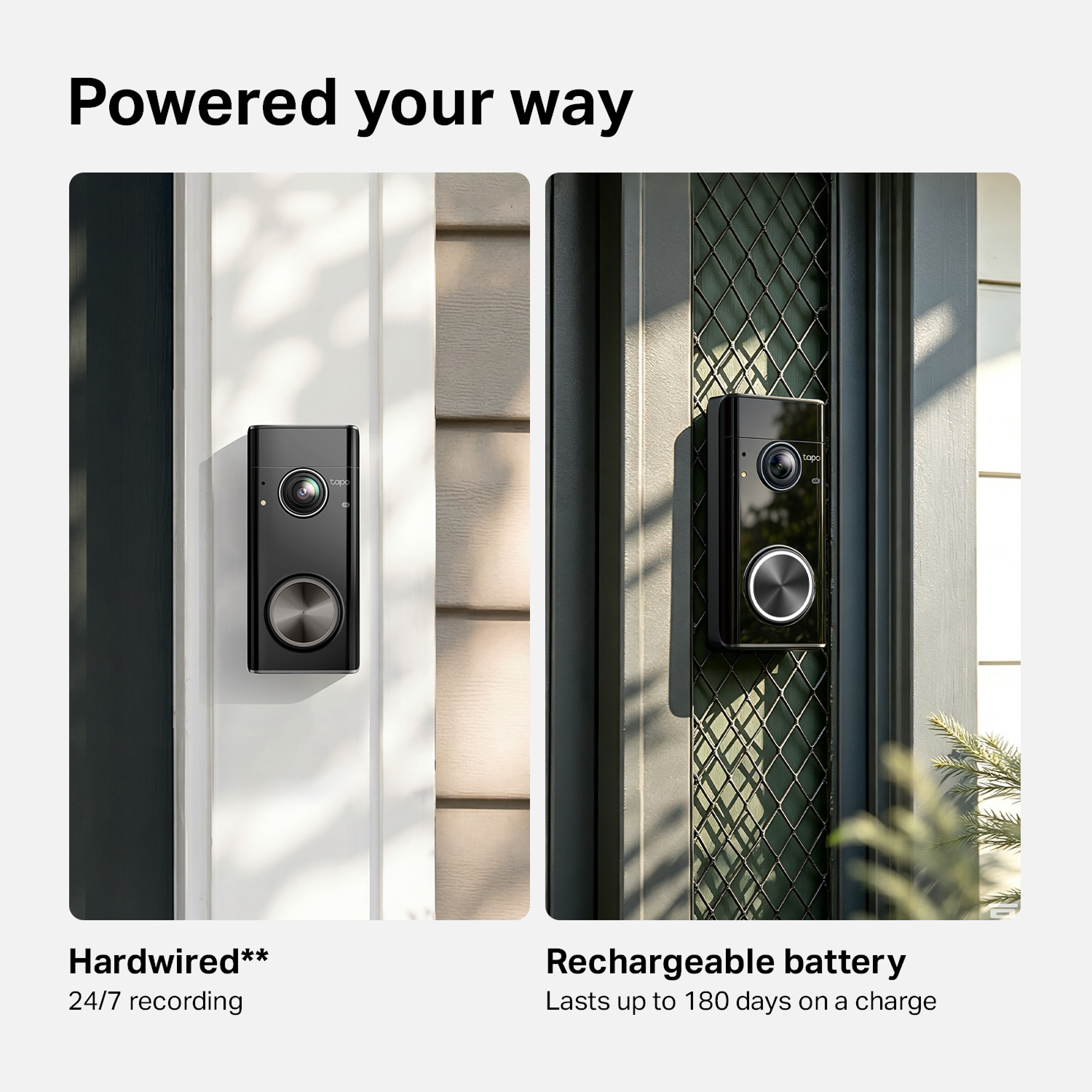

• Install it however suits you: Go wire-free for up to 180 days on a charge, or hardwire for 24/7 recording with pre-roll footage.^◇
• Answer the door, protect your privacy: Get a phone call when someone rings, and let the app mask your voice when you would rather not be recognized.
• Clear color even at night: Enhanced color night vision shows what’s happening outside your door, from late-night visitors to unexpected deliveries.
• A stronger, steadier connection: Dual-band Wi-Fi uses 5 GHz for faster speed nearby and 2.4 GHz for longer range, so your video stays smooth and lag-free.

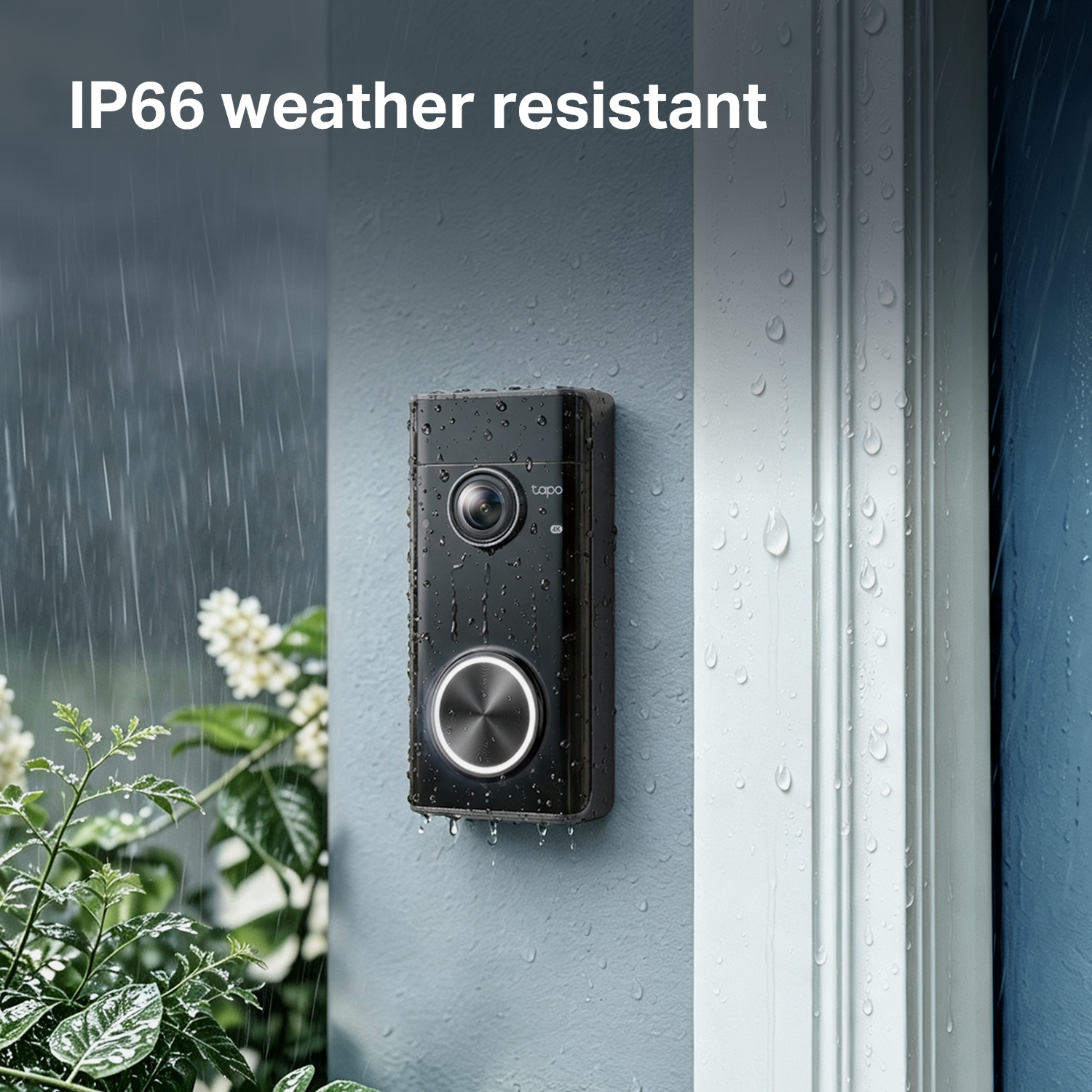

• Built to last, rain or shine: An IP66 weatherproof rating withstands rain, dust, snow, and harsh sun all year.
• Store footage locally or in the cloud: Save continuously to a microSD card up to 512 GB,^§ or subscribe to Tapo Care for 30-day cloud storage.^‡
